SPESIFIKASI HONDA JAZZ (wilayah Klaten)
| | New Jazz S | New Jazz S CVT | New Jazz RS | New Jazz RS CVT | New Jazz RS CVT Special Edition |
|---|
| Tipe |
1.5 L SOHC silinder segaris, 16 katup i-VTEC + DBW
|
1.5 L SOHC silinder segaris, 16 katup i-VTEC + DBW
|
1.5 L SOHC silinder segaris, 16 katup i-VTEC + DBW
|
1.5 L SOHC silinder segaris, 16 katup i-VTEC + DBW
|
|
| Sistem Suplai Bahan Bakar |
PGM-FI
|
PGM-FI
|
PGM-FI
|
PGM-FI
|
|
| Diameter x Langkah |
73,0 mm x 89,4 mm
|
73,0 mm x 89,4 mm
|
73,0 mm x 89,4 mm
|
73,0 mm x 89,4 mm
|
|
| Isi Silinder |
1497
|
1497
|
1497
|
1497
|
|
| Perbandingan Kompresi |
10,3 : 1
|
10,3 : 1
|
10,3 : 1
|
10,3 : 1
|
|
| Daya Maksimum |
88 Kw (120 PS) / 6.600 rpm
|
88 Kw (120 PS) / 6.600 rpm
|
88 Kw (120 PS) / 6.600 rpm
|
88 Kw (120 PS) / 6.600 rpm
|
|
| Momen Puntir Maksimum |
14,8 kg.m (145Nm) /4.800 rpm
|
14,8 kg.m (145Nm) /4.800 rpm
|
14,8 kg.m (145Nm) /4.800 rpm
|
14,8 kg.m (145Nm) /4.800 rpm
|
|
| | New Jazz S | New Jazz S CVT | New Jazz RS | New Jazz RS CVT | New Jazz RS CVT Special Edition |
|---|
| PanjangxLebarxTinggi |
3.955mm x 1.694mm x 1.524mm
|
3.955mm x 1.694mm x 1.524mm
|
3.955mm x 1.694mm x 1.524mm
|
3.955mm x 1.694mm x 1.524mm
|
|
| Jarak Sumbu Roda |
2.530mm
|
2.530mm
|
2.530mm
|
2.530mm
|
|
| Jarak Pijak Depan/Belakang |
1.492mm / 1.481mm
|
1.492mm / 1.481mm
|
1.476mm / 1.466mm
|
1.476mm / 1.466mm
|
|
| Kapasitas Tangki |
40
|
40
|
40
|
40
|
|
| | New Jazz S | New Jazz S CVT | New Jazz RS | New Jazz RS CVT | New Jazz RS CVT Special Edition |
|---|
| Tipe |
5 Speed
|
CVT
|
5 Speed
|
CVT
|
|
| 1 |
3,461
|
2,256 ~ 0,408
|
3,461
|
2,256 ~ 0,408
|
|
| 2 |
1,869
|
2,256 ~ 0,408
|
1,869
|
2,256 ~ 0,408
|
|
| 3 |
1,235
|
2,256 ~ 0,408
|
1,235
|
2,256 ~ 0,408
|
|
| 4 |
0,948
|
2,256 ~ 0,408
|
0,948
|
2,256 ~ 0,408
|
|
| 5 |
0,809
|
2,706
|
0,809
|
2,706
|
|
| Reverse |
3,307
|
2,706 ~ 1,382
|
3,307
|
2,706 ~ 1,382
|
|
| Final Gear |
4,625
|
4,992
|
4,625
|
4,992
|
|
| | New Jazz S | New Jazz S CVT | New Jazz RS | New Jazz RS CVT | New Jazz RS CVT Special Edition |
|---|
| Sistem |
Rack & Pinion with Electric Power Steering (EPS)
|
Rack & Pinion with Electric Power Steering (EPS)
|
Rack & Pinion with Electric Power Steering (EPS)
|
Rack & Pinion with Electric Power Steering (EPS)
|
|
| Tilt Steering |
|
|
|
|
|
| Telescopic Steering |
|
|
|
|
|
| | New Jazz S | New Jazz S CVT | New Jazz RS | New Jazz RS CVT | New Jazz RS CVT Special Edition |
|---|
| Suspensi Depan |
MacPherson Strut
|
MacPherson Strut
|
MacPherson Strut
|
MacPherson Strut
|
|
| Suspensi Belakang |
H-Shape Torsion Beam
|
H-Shape Torsion Beam
|
H-Shape Torsion Beam
|
H-Shape Torsion Beam
|
|
| | New Jazz S | New Jazz S CVT | New Jazz RS | New Jazz RS CVT | New Jazz RS CVT Special Edition |
|---|
| ABS + EBD |
|
|
|
|
|
| Rem Depan |
Ventilated Disc
|
Ventilated Disc
|
Ventilated Disc
|
Ventilated Disc
|
|
| Rem Belakang |
Drum
|
Drum
|
Drum
|
Drum
|
|
| | New Jazz S | New Jazz S CVT | New Jazz RS | New Jazz RS CVT | New Jazz RS CVT Special Edition |
|---|
| Ban
176 / 65 R15
176 / 65 R15
185 / 55 R16
185/ 55 R16
|
| Roda |
Alloy Wheel 15" x 5 1/2 J
|
Alloy Wheel 15" x 5 1/2 J
|
Alloy Wheel 16" x 6 J
|
Alloy Wheel 16" x 6 J
|
|
| | New Jazz S | New Jazz S CVT | New Jazz RS | New Jazz RS CVT | New Jazz RS CVT Special Edition |
|---|
| Front Lamp |
Halogen Headlight
|
Halogen Headlight
|
LED Headlight w/ auto leveling
|
LED Headlight w/ auto leveling
|
|
| Fog Lamp |
|
|
|
|
|
| Front Grille |
Glossy Black with Chrome Plating
|
Glossy Black with Chrome Plating
|
Glossy Black w/ Dark Chrome Plating & RS E
|
Glossy Black w/ Dark Chrome Plating & RS E
|
|
| Door Mirror |
Body Color (Power Retractable w/ LED Turning Signal)
|
Body Color (Power Retractable w/ LED Turning Signal)
|
Body Color (Power Retractable w/ LED Turning Signal)
|
Body Color (Power Retractable w/ LED Turning Signal)
|
|
| Door Handle |
Body Color
|
Body Color
|
Body Color
|
Body Color
|
|
| Rear License Garnish |
Body Color
|
Body Color
|
Dark Chrome
|
Dark Chrome
|
|
| Led High Mount Stop Lamp |
|
|
|
|
|
| Tailgate Spoiler |
|
|
|
|
|
| Auto Leveling Headlight |
|
|
|
|
|
| | New Jazz S | New Jazz S CVT | New Jazz RS | New Jazz RS CVT | New Jazz RS CVT Special Edition |
|---|
| Audio |
Double DIN AM/FM Single Disc MP3/WMA, CD Player + USB Port + AUX Input + Made for iPhone
|
Double DIN AM/FM Single Disc MP3/WMA, CD Player + USB Port + AUX Input + Made for iPhone
|
6,1" Touch Screen Display, AM/FM Radio, Single Disc MP3/WMA, CD/DVD Player + USB Port + AUX Input Connect wit iPhone App Mode (need additional cable and only for iPhone 4 and 4s)
|
6,1" Touch Screen Display, AM/FM Radio, Single Disc MP3/WMA, CD/DVD Player + USB Port + AUX Input Connect wit iPhone App Mode (need additional cable and only for iPhone 4 and 4s)
|
|
| Multi Information LCD Display (MIL) |
|
|
|
|
|
| ECO Assist |
|
|
|
|
|
| One Push Ignition System |
|
|
|
|
|
| Leather Steering & Shift Knob |
|
|
|
|
|
| Audio Steering Switch |
|
|
|
|
|
| Paddle Shift |
|
|
|
|
|
| Cruise Control |
|
|
|
|
|
| Auto Door Lock by Speed |
|
|
|
|
|
| Tweeter |
|
|
|
|
|

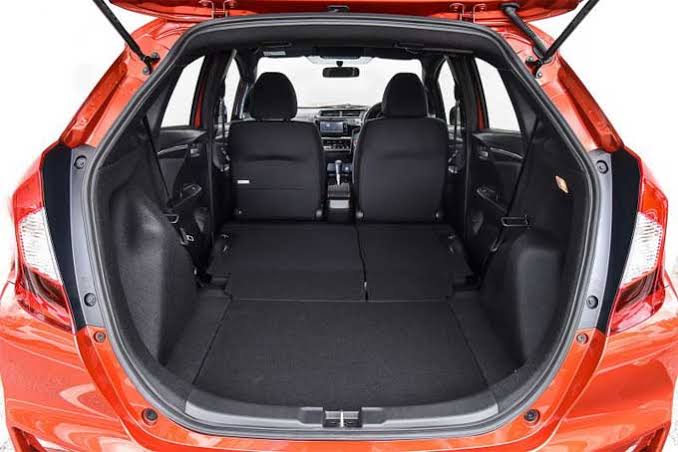

| Trunk Capacity (liter) |
363
|
363
|
363
|
363
|
|
| Green Glass |
|
|
|
|
|
| Driver Seat Height Adjuster |
|
|
|
|
|
| Front & Rear Seat Reclining |
|
|
|
|
|
| Ultra Seat |
|
|
|
|
|
| | New Jazz S | New Jazz S CVT | New Jazz RS | New Jazz RS CVT | New Jazz RS CVT Special Edition |
|---|
| Struktur Rangka Bodi |
G-CON + ACE
|
G-CON + ACE
|
G-CON + ACE
|
G-CON + ACE
|
|
| Side Impact Beam |
|
|
|
|
|
| Pedestrian Protection |
|
|
|
|
|
| Dual Front SRS Airbags |
|
|
|
|
|
| Sabuk Keselamatan (Front) |
Seatbelt Adjuster
|
Seatbelt Adjuster
|
Seatbelt Adjuster
|
Seatbelt Adjuster
|
|
| Sabuk Keselamatan (Rear) |
Seatbelt 3P ELR (x3)
|
Seatbelt 3P ELR (x3)
|
Seatbelt 3P ELR (x3)
|
Seatbelt 3P ELR (x3)
|
|
| Pretensioner w/ Load Limiter Seatbelt |
|
|
|
|
|
| ISOFIX & Tether |
|
|
|
|
|
| | New Jazz S | New Jazz S CVT | New Jazz RS | New Jazz RS CVT | New Jazz RS CVT Special Edition |
|---|
| Key Type |
Wave Key
|
Wave Key
|
Smart Key
|
Smart Key
|
|
| Keyless Entry |
|
|
|
|
|
| Immobilizer |
|
|
|
|
|
| Alarm System |
|
|
|
|
|
| Smart Entry |
|
|
|
|
|
